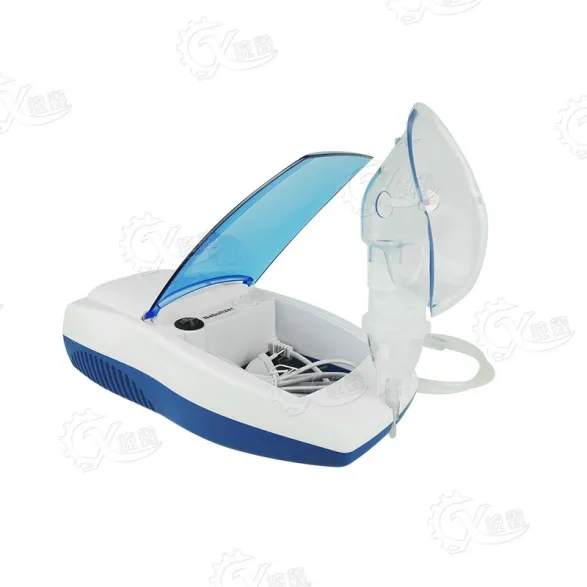

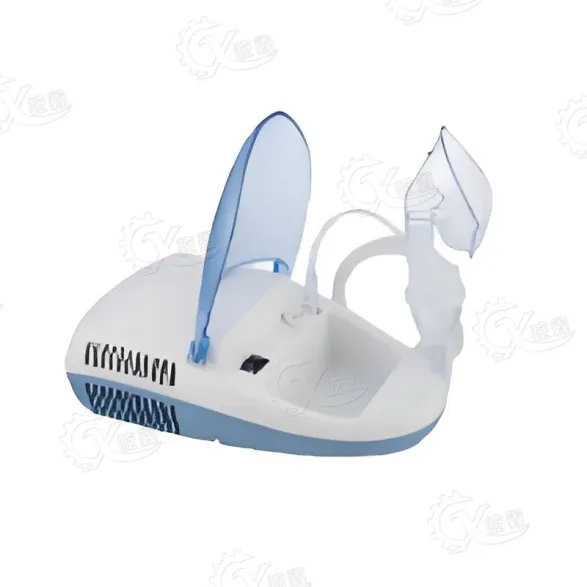

Model: TL-100-100B
Motor: 110V/230V/50/60Hz
Traffic: 6-8 ipm
Working pressure: 8-16psi
Compressor pressure: ≥ 29psi
Noise level: ≥ 60dBA
Atomization rate: ≥ 0.25-0.35ml/min
Maximum air pressure: ≤ 55psi
Warranty period: 5 years
Packaging quantity: 8 units/box
Color box size: 203 * 128 * 325mm
Outer box size: 535 * 335 * 430mm
Container quantity: 20GP: 2680 units, 40GP: 5760 units, 40HQ: 6920 units
Product Description
Compression atomizer is a common medical device, whose core function is to convert liquid drugs into extremely fine mist like particles. The patient inhales these medication sprays through a mask or mouthpiece, allowing the medication to reach the respiratory tract and lungs directly and quickly, thus achieving therapeutic effects.
You can think of it as a very fine "spray" for lung administration.
| Model No. | TL-100B |
| Description | Compressor Nebulizer |
| Motor | 220 V – 50 Hz |
| Airflow | 6 – 8 LPM |
| Operating Pressure | 8 – 12 PSI |
| Max Compressor Pressure | ≤ 55 PSI |
| Noise Level | 60 dBA |
| MMAD | ≤ 5 µm |
| Nebulizing Rate | 0.20 – 0.50 ml / min |
| MOQ | 1 000 pcs |
| Standard Accessories | 1 × nebulizing cup, 1 × air tube, 1 × adult mask, 1 × child mask, 5 × air filters, instruction manual, gift box, rating label |
| Standard Packing | Each in gift box, then export carton |
| pcs / carton | 8 |
| Carton size | 525 × 395 × 385 mm (0.086 CBM) |
| Net weight / carton | 14.5 kg |
| Gross weight / carton | 16.5 kg |
| Loading qty (reference only) | 20GP: 2 640 pcs / 40GP: 5 280 pcs / 40HQ: 6 336 pcs |
