1. Power core: AC compression motor 110V/230V/50/60HZ
2. Traffic: 6-8 ipm
3. Working pressure: 8-16psi
4. Compressor pressure: ≥ 29psi
5. Operating noise: ≤ 60dBA
6. Atomization rate: 0.25-0.35ml/min
7. Volume and weight: Large in size, with a cute cartoon design.
8. Wide drug compatibility
9. Warranty period: 5 years
Product Description
Compression atomizer is a widely used and technologically mature device in the field of nebulization therapy. It is driven by a core AC compression motor and uses the negative pressure generated by high-speed airflow to crush the medication into fine droplets for patients to inhale into the respiratory tract. It is known for its powerful power, stable performance, and wide drug adaptability. Although it has shortcomings in volume, weight, and operating noise, its excellent reliability and comprehensive compatibility make it a reliable choice for many families, especially those who need long-term specific drug treatment.

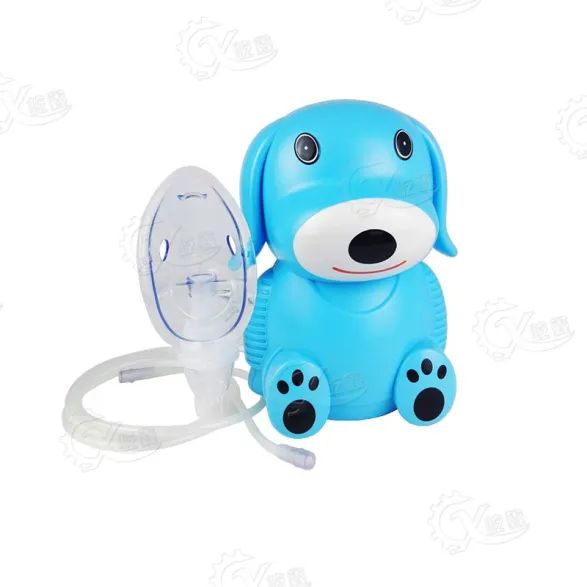

| Model No. | TL-100D |
| Description | Compressor Nebulizer |
| Motor | 220 V – 50 Hz |
| Airflow | 6 – 8 LPM |
| Operating Pressure | 8 – 12 PSI |
| Max Compressor Pressure | ≤ 55 PSI |
| Noise Level | ≤ 60 dBA |
| MMAD | ≤ 5 µm |
| Nebulizing Rate | 0.20 – 0.50 ml / min |
| MOQ | 1 000 pcs |
| Standard Accessories | 1 × nebulizing cup, 1 × air tube, 1 × adult mask, 1 × child mask, 5 × air filters, instruction manual, gift box, rating label |
| Standard Packing | Each in gift box, then export carton |
| pcs / carton | 8 |
| Carton size | 430 × 395 × 540 mm (0.092 CBM) |
| Net weight / carton | 12.8 kg |
| Gross weight / carton | 15.5 kg |
| Loading qty (reference only) | 20GP: 2 080 pcs / 40GP: 4 160 pcs / 40HQ: 5 568 pcs |
