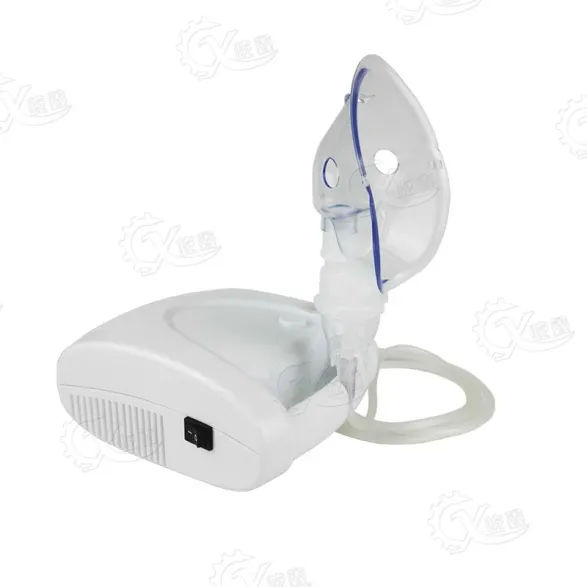

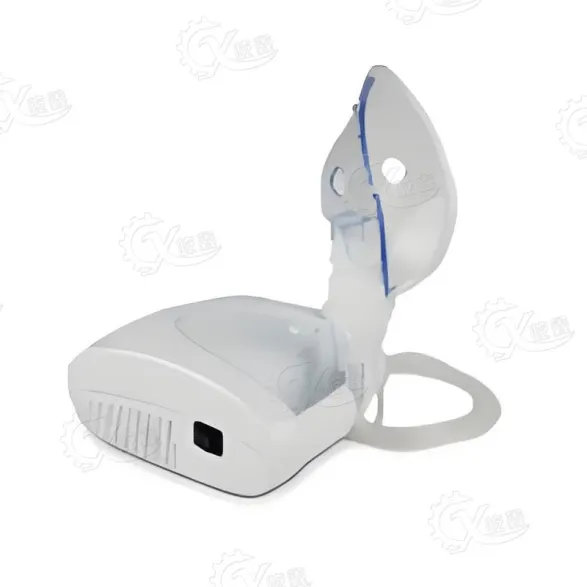

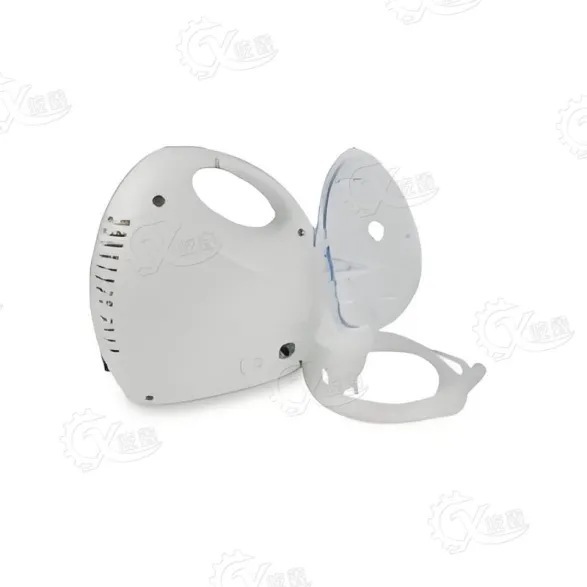

Model: TL-100A-100C Home Use Compressor Nebulizer
Motor: 110V/230V/50/60Hz
Traffic: 6-8 ipm
Working pressure: 8-16psi
Compressor pressure: ≥ 29psi
Noise level: ≥ 60dBA
Atomization rate: ≥ 0.25-0.35ml/min
Maximum air pressure: ≤ 55psi
Product Description
Compared to other types of atomizers, compression atomizers have the following significant advantages:
● Efficient drug utilization: using original drug atomization, no need for dilution, almost no drug residue, high drug utilization rate.
● Deep administration: The generated atomized particles are ultrafine (usually between 1-5 microns) and are not easily collided and combined. They can penetrate deep into lesions such as bronchi and lungs with breathing, and have excellent clinical effects, especially suitable for the treatment of lower respiratory tract diseases.
● Comfortable and convenient to use: The device is usually equipped with a long conduit, providing ample room for movement and can be used while sitting or lying down. The atomization component is lightweight, easy to wear and hold.
● Safe and reliable: Pure mechanical product, low failure rate, daily maintenance free, long service life, generally up to 5-10 years of normal use.
| Model No. | TL-100C |
| Description | Compressor Nebulizer |
| Motor | 220 V – 50 Hz |
| Airflow | 6 – 8 LPM |
| Operating Pressure | 8 – 12 PSI |
| Max Compressor Pressure | ≤ 55 PSI |
| Noise Level | ≤ 60 dBA |
| MMAD | ≤ 5 µm |
| Nebulizing Rate | 0.20 – 0.50 ml / min |
| MOQ | 1 000 pcs |
| Standard Accessories | 1 × nebulizing cup, 1 × air tube, 1 × adult mask, 1 × child mask, 5 × air filters, instruction manual, gift box, rating label |
| Standard Packing | Each in gift box, then export carton |
| pcs / carton | 8 |
| Carton size | 510 × 290 × 460 mm (0.068 CBM) |
| Net weight / carton | 12.8 kg |
| Gross weight / carton | 14.8 kg |
| Loading qty (reference only) | 20GP: 3 520 pcs / 40GP: 7 360 pcs / 40HQ: 9 072 pcs |
